Product Image

SimpleMeter

$ 33.00 $ 33.00 33.0 USD

30.00 €

Add to Cart
SimpleMeter
SimpleMeter
  1. SimpleMeter
  2. SimpleMeter

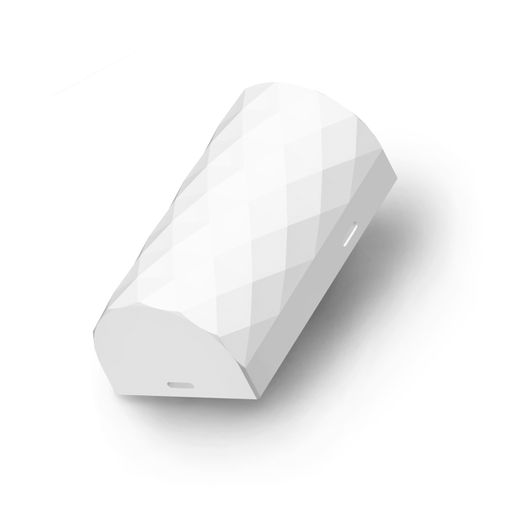

SimpleMeter

Sigfox temperature and humidity sensor
100 000 messages. 10 years battery life.

2

$ 33.00 $ 33.00 33.0 USD

30.00 €

  • Availability
  • Radio Zone
  • Typical number of messages
  • Precise Temperature
  • Humidity
  • Colour

This combination does not exist.

Add to Cart

*  RC1 (Europe, Africa & Middle East) / RC3 (Japan) / RC7 (Russia)

** RC2 (USA, Canada, Brazil, Mexico) / RC4 (Latin America & Asia Pacific) / RC5 (South Korea) working also in RC1/3/7 if roaming/Monarch is required

For detailed information see or contact us.

Not just another Sigfox temperature and humidity sensor

Simple, reliable and effective temperature and humidity sensor

  • Accelerometer
  • Reed switch sensor
  • Precise temperature
  • Precise humidity
  • Highly customizable firmware API6
  • 100 000 messages*
  • 10 years longevity*
  • Small form-factor: 94 x 52 x 35,5 mm
* The number of messages and battery longevity in the Guard me mode and were not sending more 140 messages/day (Sigfox daily limit). For more info read here.
ACCESS DEVICE DOCUMENTATION HERE
Clarico-Text-Image-2
Clarico-Image-Text

Use cases

Monitor temperature and humidity in any indoor environment.

  • Indoor air quality (offices, schools, restaurants, etc)
  • Ventilation management
  • Temperature/humidity control in the industry, health and agro sector - greenhouses, tanks, cellars, storages, laboratories, etc)
  • Energy management


The reed switch sensor is used for arming and disarming the device as well as for controlling the open/closed door position.

IoT Platform

The most advanced Sigfox platform IO Frog.com available for your use (20 days free trial)

  • All devices in one place
  • Multi-language support
  • Notifications - SMS and Email notifications set on device level
  • Android and iOS mobile apps
  • Watch the webinar recording and slides to learn more here


Support of tens of other IoT platforms

Clarico-Text-Image
Do you need help finding the best device for your use case?
Not sure which mode/settings to use?
Are you looking for a custom device solution?

Please follow our wizard here and we will be happy to assist you.

Specifications for SimpleMeter

Availability
Availability In production - order now
Radio Performance
Radio Zone RC1/3/7 or RC2/4/5 or RC4/2/5
Battery
Typical number of messages 100 000
Sensors
Precise Temperature Yes
Humidity Yes
Physical data
Colour White


BATTERY

        Typical battery life10 years
        Typical number of messages100 000
        Battery type and capacity2 x AA 2600 mAh, replaceable


        PHYSICAL INFORMATION

            Dimensions

            94 x 52 x 35,5 mm

            Volume

            123 cm3

            Weight

            66 g

            Color

            White

            Recommended operating temperature

            -40 to 85°C / ± 0.5°C

            Waterproof rating

            IP20

            Fixtures for screws drill in and high tensile cable ties

            Optional

            End customer packaging

            Optional, several ready options

            Branding

            Optional, several ready options


            SENSORS

                      ButtonNO
                      LED

                      possible

                      Accelerometer

                      no

                      Vibration detection and recordingno
                      Inclination detection

                      no

                      Shock detectionno
                      WiFi sniffing for tracking
                      		possible
                      Ambient temperatureYES, +-3°C
                      Precise temperature
                      		YES, +-0,5°C
                      Humidity
                      		YES
                      Recording and redundant reporting of eventsYES
                      Magnetometer for door openingNO
                      Reed switch for door opening and statusYES
                      Reed switch recording and counting
                      		YES
                      Ambient light detection
                      		NO
                      Machine learning / AINO
                      BarometerNO
                      Gyroscopepossible
                      PedometerNO
                      Precise timeNO
                      World time clockNO
                      External thermometerNO
                      External reed switch sensorNO
                      External flood sensorNO
                      Water leakageNO
                      Alarm sireneNO


                      SOFTWARE

                          Number of ready business cases10+
                          Full IoT platform provided with a trial period

                          YES

                          Any IoT platform supportYES
                          Programming of the device behaviorThrough web platform
                          Automation and workflow supportYES
                          Custom firmwareOptional


                          RADIO PERFORMANCE

                              Supported radio zonesRC1 (Europe, Africa & Middle East) / RC3 (Japan) / RC7 (Russia)/RC2 (USA, Canada, Brazil, Mexico) / RC4 (Latin America & Asia Pacific) / RC5 (South Korea)
                              Multizone

                              YES

                              Monarch supportYES
                              Sigfox Ready ClassClass 0 - Very good
                              Sigfox IoT agency designed and tuned antenna

                              YES

                              Support of 1 frame sending

                              YES

                              Support of 600 bps encoding

                              YES

                              Legal support of 2592 messages a day

                              YES


                              ACCESS ALL DEVICE DOCUMENTATION HERE


                              Not just another Sigfox temperature and humidity sensor

                              Simple, reliable and effective temperature and humidity sensor

                              • Accelerometer
                              • Reed switch sensor
                              • Precise temperature
                              • Precise humidity
                              • Highly customizable firmware API6
                              • 100 000 messages*
                              • 10 years longevity*
                              • Small form-factor: 94 x 52 x 35,5 mm
                              * The number of messages and battery longevity in the Guard me mode and were not sending more 140 messages/day (Sigfox daily limit). For more info read here.
