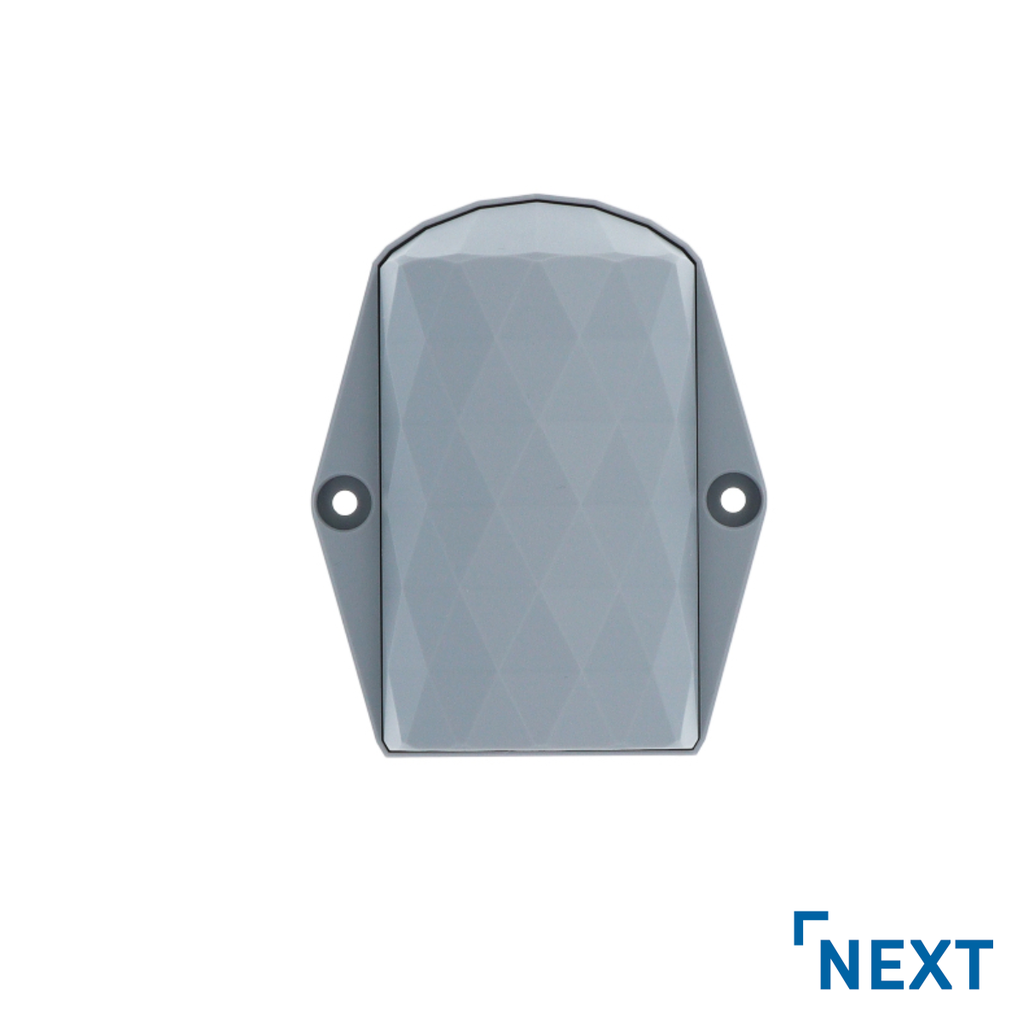

NEXTIndustry Motion/Tilt/Tracker

https://www.simplehw.eu/web/image/product.template/644/image_1920?unique=1497d5e

Sigfox and/or LoRaWAN based Smart and durable tracker with IP68 rated super strong polycarbonate casing and several fixture possibilities. Atlas localization or Motion, tilt, impact detection

$ 54.53 54.53 USD $ 54.53

Not Available For Sale

  • Colour

  • Radio protocols

  • Power

    Standard Power for Europe, Middle East, Africa, Japan

    High power only for Americas, SE Asia and Australia

    More info

  • Factory configuration

This combination does not exist.

Contact Us
Colour: Grey

Track, trace and guard your assets with super-strong Sigfox and/or LoRaWAN based device!

Monitor the position and state of your packages, pallets, containers or assets with the strong NEXTIndustry Motion/Tilt/Track. Especially suitable for industrial use cases requiring heavy-duty devices.

  • Accelerometer
  • Reed switch sensor**
  • Highly customizable firmware API 7
  • IP68 rating
  • Possibility to connect external sensors
  • 100 000 messages*
  • 10 years longevity*
  • Small form-factor: 94 x 65 x 32,5 mm (without holder)
  • Operating temperature -40°C to 85°C
* The number of messages and battery longevity in the Guard me mode and were not sending more 140 messages/day (Sigfox daily limit). For more info read here.

** The reed switch sensor is used for arming and disarming the device as well as for controlling the open/closed door position.


ACCESS DEVICE DOCUMENTATION HERE
Clarico-Text-Image-2
Clarico-Text-Image-2

Use cases

  • Logistics - the parcel, pallet, container tracking, and tracing, possible damage monitoring
  • Asset monitoring - locating stolen or lost items


Worldwide tracking with Monarch available (project-based) - contact us with your inquiry.

Combination with other sensors upon request (e.g. temperature sensor for cold-chain monitoring) - contact us with your inquiry.

            IoT platform

            The most advanced Sigfox platform IO Frog.com available for your use (20 days free trial)

            • All devices in one place
            • Multi-language support
            • Map view - custom markers based on device status, tracing the history, the difference between the home position and current position
            • Notifications - SMS and Email notifications set on device level
            • Android and iOS mobile apps
            • Watch the webinar recording and slides to learn more here


            Support of tens of other IoT platforms

            Clarico-Text-Image-2
            Clarico-Text-Image-2

            Mounting options

            Several fixture possibilities to choose from:

            • Industrial 3M UVB double-sided tape with 300kg strength
            • Horizontal screws
            • Vertical screws
            • Super strong magnetic fixture

            Do you need help finding the best device for your use case?
            Not sure which mode/settings to use?
            Are you looking for a custom device solution?

            Please follow our wizard here and we will be happy to assist you.
